Maximum Speed

km/h
Displacement

149

cc
Wheelbase

1290

mm
Ground Clearance

155

mm

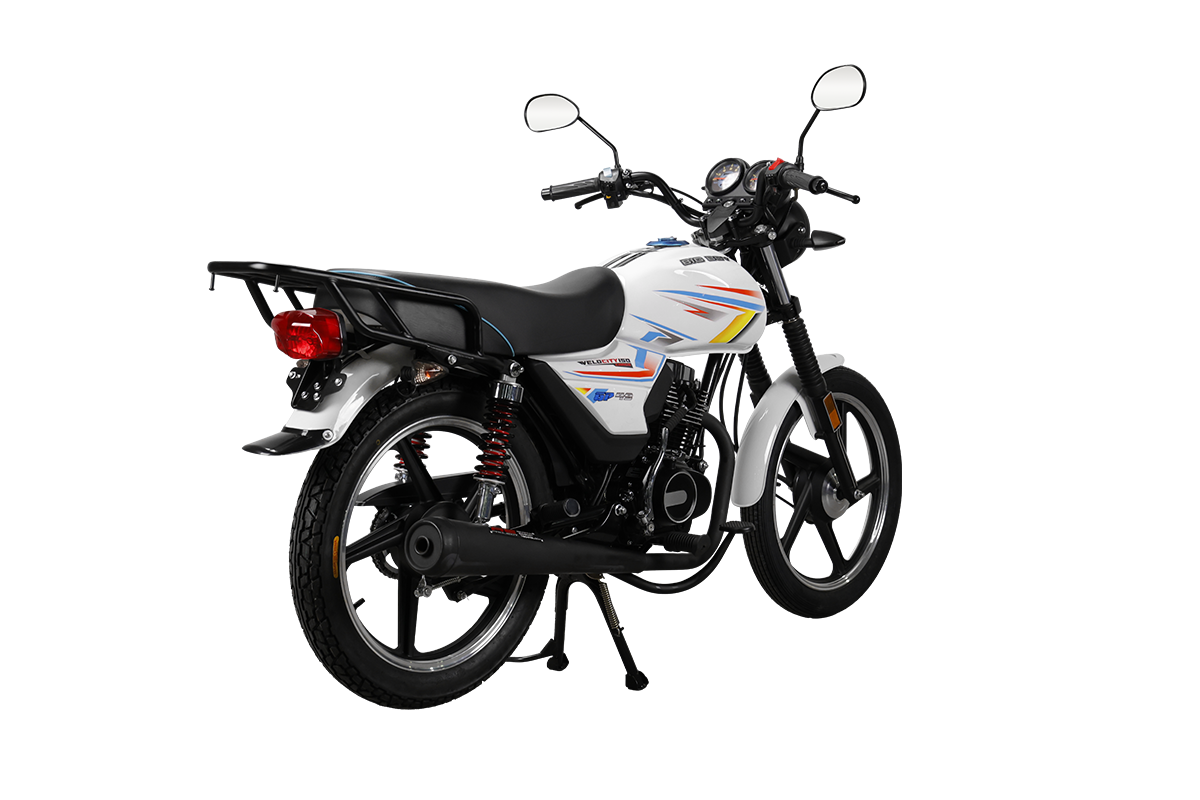

KYD150-2A

White
The details are subject to the actual vehicle
Specifications

Vehicle Parameters

Engine Parameters

Basic Configuration

Size 1995x790x1070 mm
Wheelbase 1290 mm
Net Weight 107 kg
Ccurb Weight 150 kg
Ground Clearance 155 mm
Engine Single-bar four-stroke air-cooled
Compression Ratio 9.2:1
Displacementf 149 cc
Cylinder diameter X stroke 62×49.5 mm
Maximum Power 8.8kw/8500rpm
MAXIMUM TORQUE 10.2N·m/7500rpm
Start Mode Electric start
Ignition Method CDI
Tire Size(FR.RR) 2.75-18,3.00-18
Brake Mode Front disc brake, rear drum brake
