Maximum Speed

90

km/h
Displacement

149

cc
Wheelbase

1240

mm
Ground Clearance

195

mm

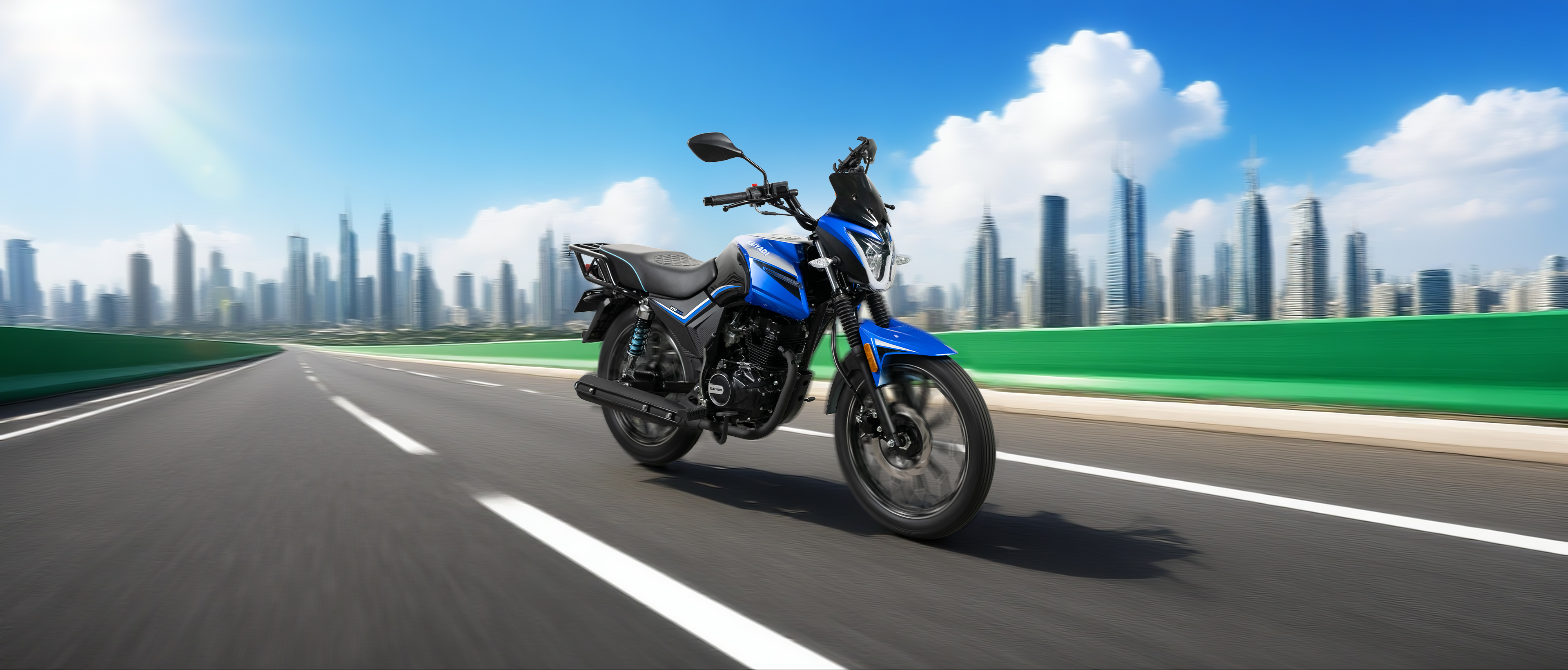

KYD150-5A

Blue
The details are subject to the actual vehicle
Specifications

Vehicle Parameters

Engine Parameters

Basic Configuration

Size 1960x745x1045 mm
Wheelbase 1240 mm
Net Weight 105 kg
Ccurb Weight 150 kg
Ground Clearance 195 mm
Engine Single-bar four-stroke air-cooled
Compression Ratio 9.2:1
Displacementf 149 cc
Cylinder diameter X stroke 62×49.5 mm
Maximum Power 8.8kw/8500rpm
MAXIMUM TORQUE 10.2N·m/7500rpm
Start Mode Electric start
Maximum Speed 90 km/h
Ignition Method CDI
Tire Size(FR.RR) 2.75-18,3.00-18
Brake Mode Front disc brake, rear drum brake
