Maximum Speed

85

km/h
Displacementf

124

cc
Ground Clearance

150

mm
Wheelbase

1300

mm

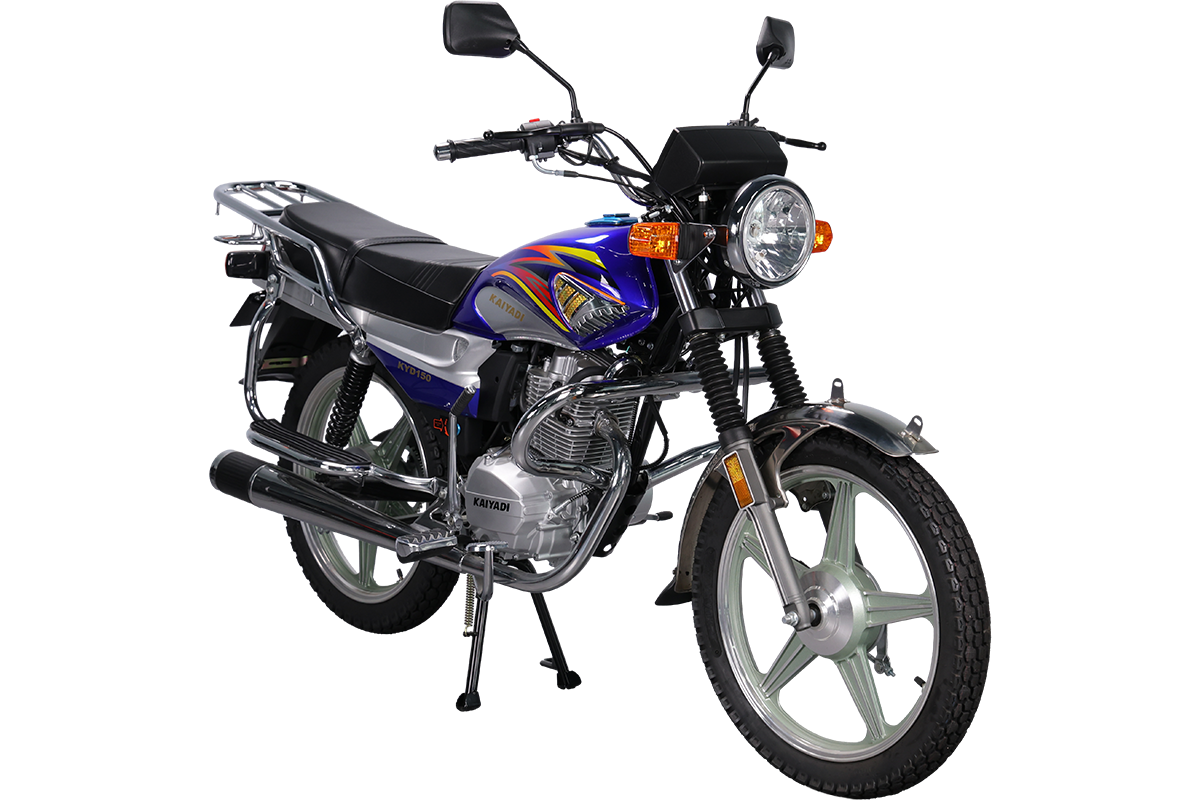

ZF125-8(D)

Blue
The details are subject to the actual vehicle
Specifications

Vehicle Parameters

Basic Configuration

Engine Parameters

Size 2040x790x1060mm
Wheelbase 1300mm
Net Weight 115Kg
Ccurb Weight 150Kg
Ground Clearance 150mm
Ignition Method CDI
Tire Size(FR.RR) 2.75x18,3.00x18
Brake Mode drum brake
Engine Single-bar four-stroke air-cooled
Compression Ratio 9.0:1
Displacementf 124cc
Cylinder diameter X stroke 56.5x49.5mm
Maximum Power 7.5kw/8500rpm
MAXIMUM TORQUE 8.5N·m/7500rpm
Start Mode Electric start
Maximum Speed 85km/h
