CN Service Stores
Maximum Speed

90

km/h
Displacementf

149

cc
Ground Clearance

195

mm
Wheelbase

1240

mm

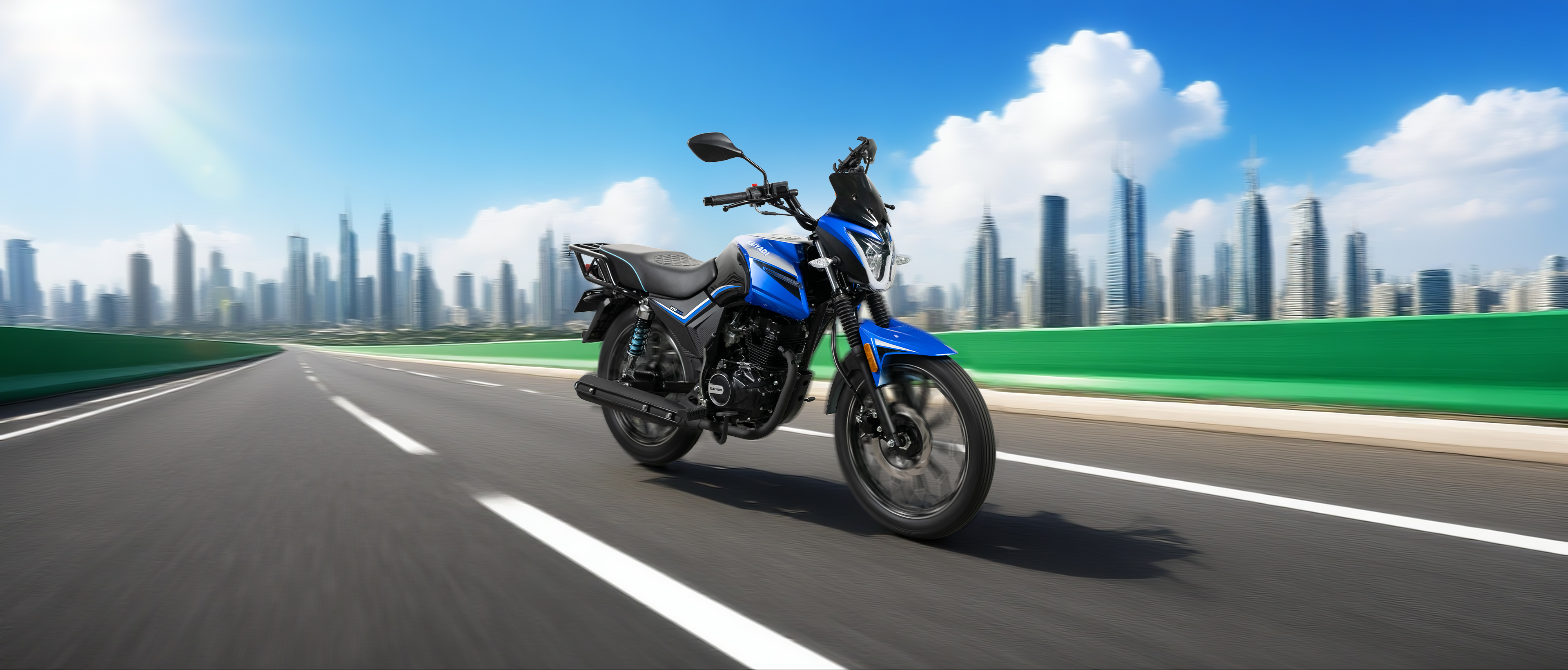

KYD150-5A

Blue
The details are subject to the actual vehicle
Specifications

Vehicle Parameters

Basic Configuration

Engine Parameters

Size 1960x745x1045mm
Wheelbase 1240mm
Net Weight 105Kg
Ccurb Weight 150Kg
Ground Clearance 195mm
Ignition Method CDI
Tire Size(FR.RR) 2.75-18,3.00-18
Brake Mode Front disc brake, rear drum brake
Engine Single-bar four-stroke air-cooled
Compression Ratio 9.2:1
Displacementf 149cc
Cylinder diameter X stroke 62×49.5mmmm
Maximum Power 8.8kw/8500rpm
MAXIMUM TORQUE 10.2N·m/7500rpm
Start Mode Electric start
Maximum Speed 90km/h
